Tianye PVC resin

short description:

Features thermo plasticity, being insoluble into water, gasoline and alcohol, swelled or dissolved into ether, ketone, chlorinated aliphatic hydrocarbons, and aromatic hydrocarbon, high resistance to corrosion, and good dielectric property.


Product Detail

Product Tags

Tianye PVC resin,
PVC SG3, PVC SG5, PVC SG7, PVC SG8, Tianye PVC Resin,

Xinjiang Tianye produces and supplies
1,200, 000 tons of PVC resin annually,
complying with REACH.
All the manufacturing locations are
certified on Quality Management System
(ISO 9001:2000)

Chemical Information:

Name:PVC resin, Polyvinyl Chloride Resin

Formula:(C2H3Cl)n

CAS number:9002-86-2

HS code:39041090.01

Apparent:White powder

Features thermo plasticity, being insoluble into water, gasoline and alcohol, swelled or dissolved into ether, ketone, chlorinated aliphatic hydrocarbons, and aromatic hydrocarbon, high resistance to corrosion, and good dielectric property.

Specification

Type

SG3

SG4

SG5

SG6

SG7

SG8

K value

72-71

70-69

68-66

65-63

62-60

59-55

Viscosity, ml/g

135-127

126-119

118-107

106-96

95-87

86-73

Average polymerization

1350-1250

1250-1150

1100-1000

950-850

950-850

750-650

Number of impurity particle max

30

30

30

30

40

40

Volatiles content % max

0.4

0.4

0.4

0.4

0.4

0.4

Appearing density g/ml min

0.42

0.42

0.42

0.45

0.45

0.45

Residual after sieve 0.25mm mesh max

2

2

2

2

2

2

0.063mm min

90

90

90

90

90

90

Number of grain/10000px2 max

40

40

40

40

40

40

Plasticizer absorbency value of 100g resin

25

22

19

16

14

14

Whiteness % min

74

74

74

74

70

70

Residual chlorethylenecontent mg/kg max

5

5

5

5

5

5

Ethylidene chloride mg/kg max

150

150

150

150

150

150

Applications

*SG-1is used in producing high-grade electrical insulating material

*SG-2is used in producing electrical insulating material, common soft products andfilm

*SG-3 is used in producing electrical insulatingmaterials, agricultural film, daily-use plastic products,such

as Films, raincoat, industry packing,artificial leather, hose and shoe-making material, etc.

*SG-4 is used in producing membranelle for industrial andcivil use, tube and pipes

*SG-5 is used in producing transparent products sectionbar, hard tube and decorative materials,such

as Rigid plate, gramophone record, valueand welding rod, PVC pipes, PVC windows, doors ,etc

*SG-6 is used in producing clear foil, hard board andwelding rod

*SG-7, SG-8 is used in producing clear foil, hardinjection molding.Good hardness and high strength,mainlyused for tubes and pipes

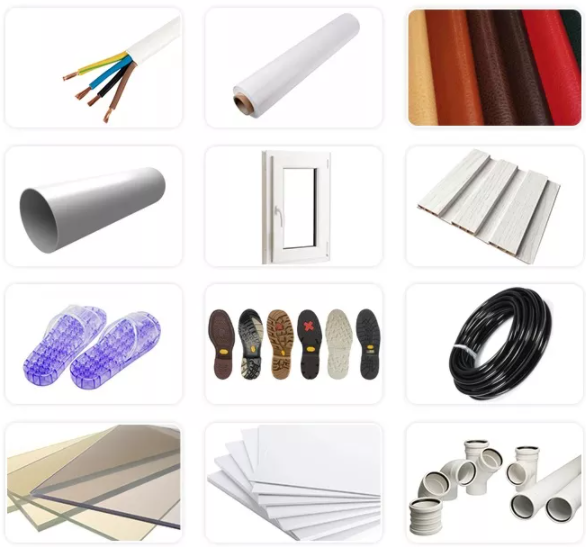

pvc application

Packaging

In 25kg kraft bag or 1100kg jumbo bag.

17MT/20'FCL
